RF57減速機電機功率：

RF57Y0.18KW,RF57Y0.25KW,RF57Y0.37KW,RF57Y0.55KW,RF57Y0.75KW,RF57Y1.1KW,RF57Y1.5KW,RF57Y2.2KW,RF57Y3KW,RF57Y4KW,RF57Y5.5KW,RF57Y7.5KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機減速機，單相電機）。

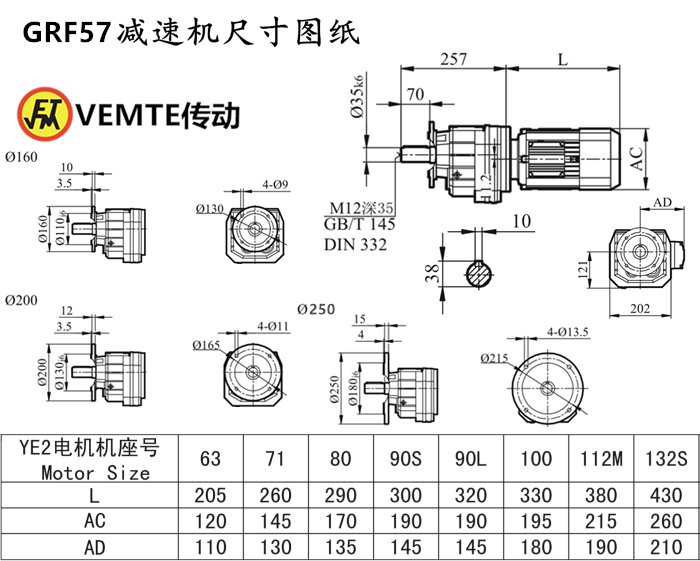

RF57減速機安裝尺寸：輸出軸Φ35+鍵3（可定做），高187*寬202*長257（帶輸出軸）

齒輪減速器RF57減速比：

4.39比減速機,5.05比減速機,5.82.比減速機,6.41比減速機,7.53比減速機,7.97比減速機,9.06比減速機,9.35比減速機,10.79比減速機,11.18比減速機,13.95比減速機,14.77比減速機,16.79比減速機,18.60比減速機,21.93比減速機,24.99比減速機,26.31比減速機,26.97比減速機,30.18比減速機,35.07比減速機,37.3比減速機,43.3比減速機,48.32比減速機,53.22比減速機,57.29比減速機,64.85比減速機,69.23比減速機,80.55比減速機,89.71比減速機,98.99比減速機,106.58比減速機,120.63比減速機,128.77比減速機,147.92比減速機,172.17比減速機,186.89比減速機

RF57同軸齒輪減速器輸出轉數：

7.5轉減速箱,8.1轉減速箱,9.5轉減速箱,11轉減速箱,12轉減速箱,13轉減速箱,14轉減速箱,16轉減速箱,17轉減速箱,20轉減速箱,22轉減速箱,24轉減速箱,26轉減速箱,29轉減速箱,32轉減速箱,32轉減速箱,38轉減速箱,40轉減速箱,46轉減速箱,52轉減速箱,53轉減速箱,56轉減速箱,64轉減速箱,75轉減速箱,83轉減速箱,95轉減速箱,100轉減速箱,118轉減速箱,130轉減速箱,150轉減速箱,155轉減速箱,176轉減速箱,186轉減速箱,218轉減速箱,241轉減速箱,277轉減速箱,319轉減速箱。（以上rpm數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

RF57減速機輸出扭矩：

280Nm減速器,305Nm減速器,320Nm減速器,335Nm減速器,350Nm減速器,355Nm減速器,370Nm減速器,375Nm減速器,390Nm減速器,405Nm減速器,430Nm減速器,435Nm減速器,450Nm減速器。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速器型號加大,或者兩個減速機組合使用）

R系列減速電機RF57減速機電機型號：RF57DV63S4,RF57DV71S4,RF57DV80S4,RF57DV90S4,RF57DV100S4,RF57DV112S4,RF57DV132S4,RF57DT63S4,RF57DT71S4,RF57DT80S4,RF57DT90S4,RF57DT100S4,RF57DT112S4,RF57DT132S4,RF57DRS63S4,RF57DRS71S4,RF57DRS80S4,RF57DRS90S4,RF57DRS100S4,RF57DRS112S4,RF57DRS132S4,RF57DRE63S4,RF57DRE71S4,RF57DRE80S4,RF57DRE90S4,RF57DRE100S4,RF57DRE112S4,RF57DRE132S4,RF57Y63S4,RF57Y71S4,RF57Y80S4,RF57Y90S4,RF57Y100S4,RF57Y112S4,RF57Y132S4,RF57DV63M4,RF57DV71M4,RF57DV80M4,RF57DV90M4,RF57DV100M4,RF57DV112M4,RF57DV132M4,RF57DT63M4,RF57DT71M4,RF57DT80M4,RF57DT90M4,RF57DT100M4,RF57DT112M4,RF57DT132M4,RF57DRS63M4,RF57DRS71M4,RF57DRS80M4,RF57DRS90M4,RF57DRS100M4,RF57DRS112M4,RF57DRS132M4,RF57DRE63M4,RF57DRE71M4,RF57DRE80M4,RF57DRE90M4,RF57DRE100M4,RF57DRE112M4,RF57DRE132M4,RF57Y63M4,RF57Y71M4,RF57Y80M4,RF57Y90M4,RF57Y100M4,RF57Y112M4,RF57Y132M4,RF57DV63L4,RF57DV71L4,RF57DV80L4,RF57DV90L4,RF57DV100L4,RF57DV112L4,RF57DV132L4,RF57DT63L4,RF57DT71L4,RF57DT80L4,RF57DT90L4,RF57DT100L4,RF57DT112L4,RF57DT132L4,RF57DRS63L4,RF57DRS71L4,RF57DRS80L4,RF57DRS90L4,RF57DRS100L4,RF57DRS112L4,RF57DRS132L4,RF57DRE63L4,RF57DRE71L4,RF57DRE80L4,RF57DRE90L4,RF57DRE100L4,RF57DRE112L4,RF57DRE132L4,RF57Y63L4,RF57Y71L4,RF57Y80L4,RF57Y90L4,RF57Y100L4,RF57Y112L4,RF57Y132L4

RF57減速機搭配各種電機實物圖：

RF57減速機工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://52kfvp.cn/product/list-rfxiliejiansuji-cn.html

推薦類似型號：減速機RX97
