RF37齒輪減速機電機功率：

RF37Y0.18KW,RF37Y0.25KW,RF37Y0.37KW,RF37Y0.55KW,RF37Y0.75KW,RF37Y1.1KW,RF37Y1.5KW,RF37Y2.2KW,RF37Y3KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

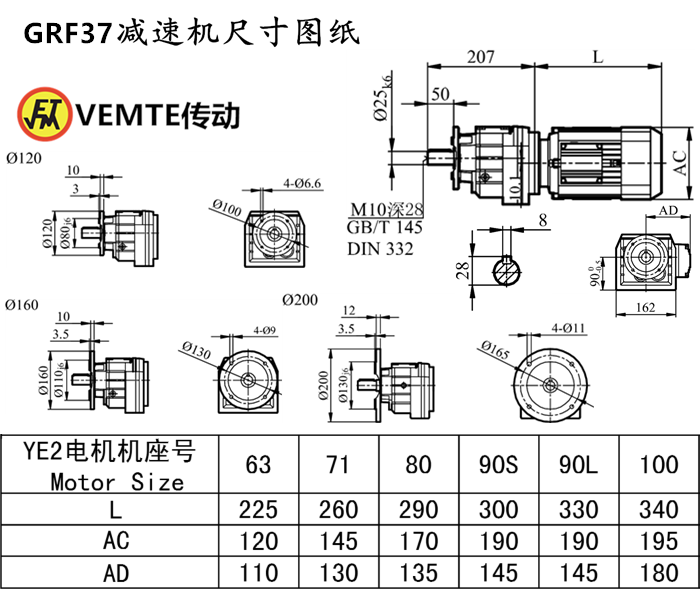

RF37減速機安裝尺寸：輸出軸Φ25+鍵3（可定做），高151*寬149*長201（帶輸出軸）

RF37減速機減速比：

3.41比減速機,4.05比減速機,4.32比減速機,5.06比減速機,5.67比減速機,6.67比減速機,7.97比減速機,9.47比減速機,10.11比減速機,11.83比減速機,13.25比減速機,15.6比減速機,18.05比減速機,19.31比減速機,22.27比減速機,24.42比減速機,26.03比減速機,28.32比減速機,28.73比減速機,32.4比減速機,36.72比減速機,39.17比減速機,44.81比減速機,48.08比減速機,55.76比減速機,61.18比減速機,69.33比減速機,73.96比減速機,84.61比減速機,90.77比減速機,105.28比減速機,123.66比減速機,134.82比減速機

GRF系列減速電機RF37減速箱輸出轉數：

10轉減速箱,11轉減速箱,13轉減速箱,15轉減速箱,17轉減速箱,19轉減速箱,20轉減速箱,23轉減速箱,25轉減速箱,29轉減速箱,31轉減速箱,36轉減速箱,38轉減速箱,43轉減速箱,49轉減速箱,54轉減速箱,57轉減速箱,63轉減速箱,73轉減速箱,78轉減速箱,90轉減速箱,106轉減速箱,118轉減速箱,138轉減速箱,148轉減速箱,176轉減速箱,210轉減速箱,247轉減速箱,277轉減速箱,324轉減速箱,346轉減速箱,411轉減速箱,。（以上rpm數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

RF37減速機輸出扭矩：

112Nm減速器,122Nm減速器,126Nm減速器,135Nm減速器,142Nm減速器,144Nm減速器,156Nm減速器,167Nm減速器,170Nm減速器,183Nm減速器,185Nm減速器,190Nm減速器,200Nm減速器。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速器型號加大,或者兩個減速機組合使用）

RF37減速機電機型號：RF37DV63S4,RF37DV71S4,RF37DV80S4,RF37DV90S4,RF37DV100S4,RF37DT63S4,RF37DT71S4,RF37DT80S4,RF37DT90S4,RF37DT100S4,RF37DRS63S4,RF37DRS71S4,RF37DRS80S4,RF37DRS90S4,RF37DRS100S4,RF37DRE63S4,RF37DRE71S4,RF37DRE80S4,RF37DRE90S4,RF37DRE100S4,RF37Y63S4,RF37Y71S4,RF37Y80S4,RF37Y90S4,RF37Y100S4,RF37DV63M4,RF37DV71M4,RF37DV80M4,RF37DV90M4,RF37DV100M4,RF37DT63M4,RF37DT71M4,RF37DT80M4,RF37DT90M4,RF37DT100M4,RF37DRS63M4,RF37DRS71M4,RF37DRS80M4,RF37DRS90M4,RF37DRS100M4,RF37DRE63M4,RF37DRE71M4,RF37DRE80M4,RF37DRE90M4,RF37DRE100M4,RF37Y63M4,RF37Y71M4,RF37Y80M4,RF37Y90M4,RF37Y100M4,RF37DV63L4,RF37DV71L4,RF37DV80L4,RF37DV90L4,RF37DV100L4,RF37DT63L4,RF37DT71L4,RF37DT80L4,RF37DT90L4,RF37DT100L4,RF37DRS63L4,RF37DRS71L4,RF37DRS80L4,RF37DRS90L4,RF37DRS100L4,RF37DRE63L4,RF37DRE71L4,RF37DRE80L4,RF37DRE90L4,RF37DRE100L4,RF37Y63L4,RF37Y71L4,RF37Y80L4,RF37Y90L4,RF37Y100L4,

RF37硬齒面減速器搭配各種電機實物圖：

RF37減速機工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://52kfvp.cn/product/list-rfxiliejiansuji-cn.html

推薦類似型號：減速機RX77
