R147減速機電機功率：R系列減速電機

R147Y5.5KW,R147Y7.5KW,R147Y11KW,R147Y15KW,R147Y18.5KW,R147Y22KW,R147Y30KW,R147Y37KW,R147Y45KW,R147Y55KW,R147Y75KW,R147Y90KW（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

R147齒輪減速機減速比：

5比減速器,5.89比減速器,7.25比減速器,8.26比減速器,9.74比減速器,11.99比減速器,13.91比減速器,15.64比減速器,18.04比減速器,20.44比減速器,24.19比減速器,29.95比減速器,35.64比減速器,40.29比減速器,46.65比減速器,52.87比減速器,61.09比減速器,66.99比減速器,72.09比減速器,83.47比減速器,94.6比減速器,109.31比減速器,119.86比減速器,146.91比減速器,163.31比減速器

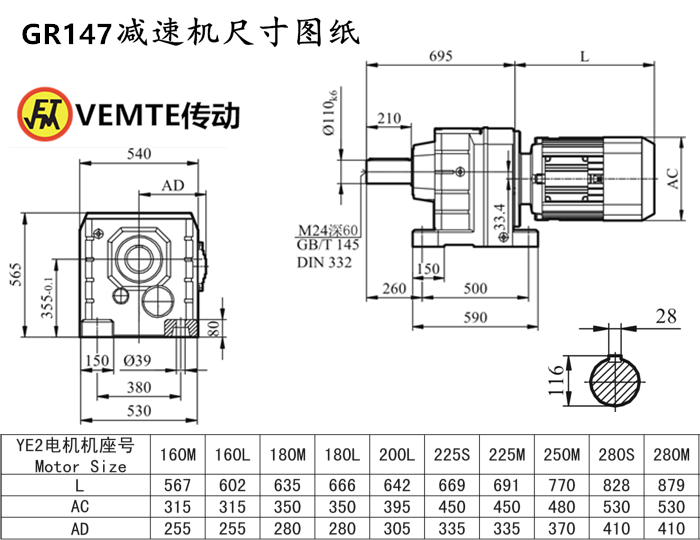

R147減速機安裝尺寸：輸出軸Φ110+鍵6（可定做），高565*寬530*長695（帶輸出軸）

R147減速機輸出轉數：

8.6轉減速機,9.5轉減速機,12轉減速機,13轉減速機,15轉減速機,17轉減速機,19轉減速機,21轉減速機,23轉減速機,26轉減速機,30轉減速機,35轉減速機,39轉減速機,47轉減速機,58轉減速機,68轉減速機,78轉減速機,90轉減速機,101轉減速機,117轉減速機,144轉減速機,169轉減速機,193轉減速機,238轉減速機,280轉減速機。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

R147同軸減速電機輸出扭矩：

減速箱8670N.m,減速箱10500N.m,減速箱11900N.m,減速箱12000N.m,減速箱12600N.m,減速箱13000N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

R147減速機電機型號:

R147DV132S4,R147DV160S4,R147DV180S4,R147DV200S4,R147DV225S4,R147DV250S4,R147DV280S4,R147DT132S4,R147DT160S4,R147DT180S4,R147DT200S4,R147DT225S4,R147DT250S4,R147DT280S4,R147DRS132S4,R147DRS160S4,R147DRS180S4,R147DRS200S4,R147DRS225S4,R147DRS250S4,R147DRS280S4,R147DRE132S4,R147DRE160S4,R147DRE180S4,R147DRE200S4,R147DRE225S4,R147DRE250S4,R147DRE280S4,R147Y132S4,R147Y160S4,R147Y180S4,R147Y200S4,R147Y225S4,R147Y250S4,R147Y280S4,R147DV132M4,R147DV160M4,R147DV180M4,R147DV200M4,R147DV225M4,R147DV250M4,R147DV280M4,R147DT132M4,R147DT160M4,R147DT180M4,R147DT200M4,R147DT225M4,R147DT250M4,R147DT280M4,R147DRS132M4,R147DRS160M4,R147DRS180M4,R147DRS200M4,R147DRS225M4,R147DRS250M4,R147DRS280M4,R147DRE132M4,R147DRE160M4,R147DRE180M4,R147DRE200M4,R147DRE225M4,R147DRE250M4,R147DRE280M4,R147Y132M4,R147Y160M4,R147Y180M4,R147Y200M4,R147Y225M4,R147Y250M4,R147Y280M4,R147DV132L4,R147DV160L4,R147DV180L4,R147DV200L4,R147DV225L4,R147DV250L4,R147DV280L4,R147DT132L4,R147DT160L4,R147DT180L4,R147DT200L4,R147DT225L4,R147DT250L4,R147DT280L4,R147DRS132L4,R147DRS160L4,R147DRS180L4,R147DRS200L4,R147DRS225L4,R147DRS250L4,R147DRS280L4,R147DRE132L4,R147DRE160L4,R147DRE180L4,R147DRE200L4,R147DRE225L4,R147DRE250L4,R147DRE280L4,R147Y132L4,R147Y160L4,R147Y180L4,R147Y200L4,R147Y225L4,R147Y250L4,R147Y280L4,

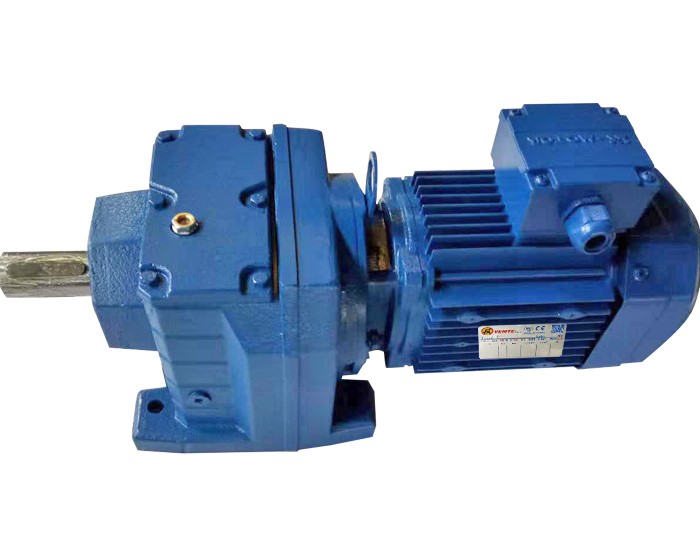

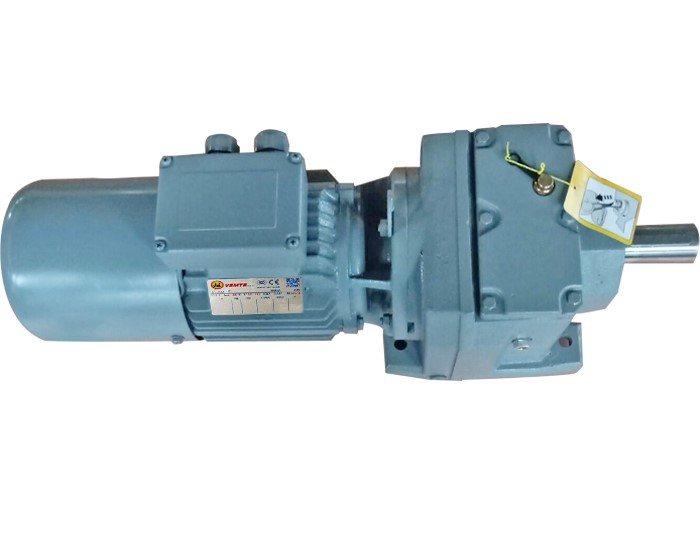

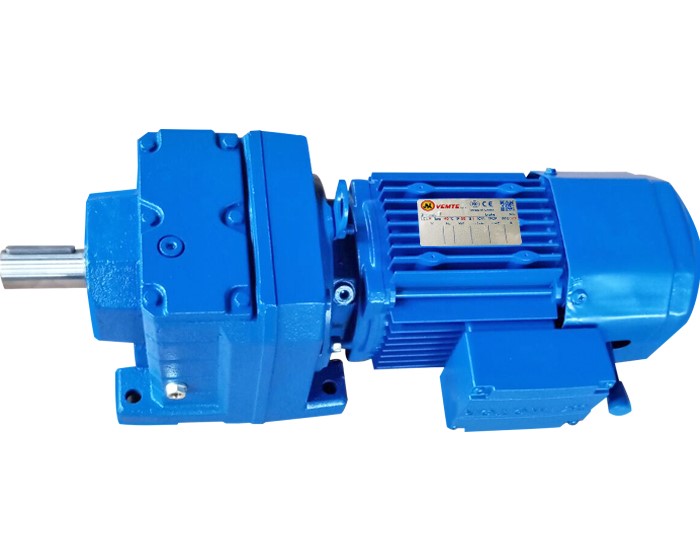

R系列減速器R147減速機配各種電機的實物圖：

R147減速機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約

推薦類似型號：減速機RF147
