KF67減速機電機功率：

KF67Y0.18KW,KF67Y0.25KW,KF67Y0.37KW,KF67Y0.55KW,KF67Y0.75KW,KF67Y1.1KW,KF67Y1.5KW,KF67Y2.2KW,KF67Y3KW,KF67Y4KW,KF67Y5.5KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

KF67齒輪減速機減速比：

144.79比減速機,123.54比減速機,108.03比減速機,102.62比減速機,90.04比減速機,76.37比減速機,68.95比減速機,60.66比減速機,57.28比減速機,48.77比減速機,44.32比減速機,38.39比減速機,35.62比減速機,30.22比減速機,27.28比減速機,24比減速機,22.66比減速機,19.3比減速機,17.54比減速機,15.19比減速機,13.22比減速機,12.48比減速機,10.63比減速機,9.66比減速機,8.37比減速機,7.28比減速機,5.2比減速機

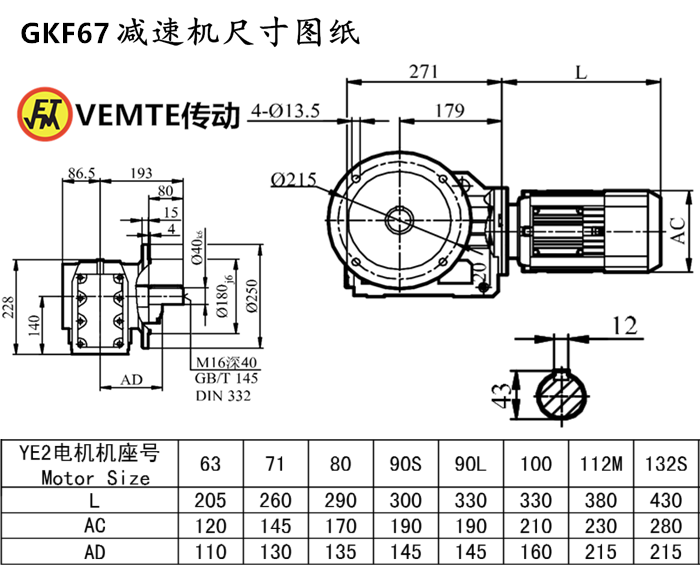

KF67減速機安裝尺寸：輸出軸+鍵Φ43（可定做），高228*寬279.5（帶輸出軸）*長269

KF67傘齒輪減速器輸出轉數(shù)：

9.7轉減速箱,11轉減速箱,13轉減速箱,14轉減速箱,16轉減速箱,18轉減速箱,20轉減速箱,23轉減速箱,24轉減速箱,29轉減速箱,32轉減速箱,36轉減速箱,39轉減速箱,46轉減速箱,51轉減速箱,58轉減速箱,62轉減速箱,73轉減速箱,80轉減速箱,92轉減速箱,106轉減速箱,112轉減速箱,132轉減速箱,145轉減速箱,167轉減速箱,192轉減速箱,269轉減速箱。（以上rpm數(shù)均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調(diào)速）

KF67減速機輸出扭矩：KF系列減速機

820Nm減速器,780Nm減速器,760Nm減速器,740Nm減速器,700Nm減速器,670Nm減速器,530Nm減速器,500Nm減速器,480Nm減速器,440Nm減速器,420Nm減速器,350Nm減速器。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速器型號加大,或者兩個減速機組合使用）

KF67減速機電機型號：KF67DRE100M4,KF67DRE112M4,KF67DRE132M4,KF67DRE63M4,KF67DRE71M4,KF67DRE80M4,KF67DRE90M4,KF67DRS100M4,KF67DRS112M4,KF67DRS132M4,KF67DRS63M4,KF67DRS71M4,KF67DRS80M4,KF67DRS90M4,KF67DT100M4,KF67DT112M4,KF67DT132M4,KF67DT63M4,KF67DT71M4,KF67DT80M4,KF67DT90M4,KF67DV100M4,KF67DV112M4,KF67DV132M4,KF67DV63M4,KF67DV71M4,KF67DV80M4,KF67DV90M4,KF67Y100M4,KF67Y112M4,KF67Y132M4,KF67Y63M4,KF67Y71M4,KF67Y80M4,KF67Y90M4,KF67DRE100S4,KF67DRE112S4,KF67DRE132S4,KF67DRE63S4,KF67DRE71S4,KF67DRE80S4,KF67DRE90S4,KF67DRS100S4,KF67DRS112S4,KF67DRS132S4,KF67DRS63S4,KF67DRS71S4,KF67DRS80S4,KF67DRS90S4,KF67DT100S4,KF67DT112S4,KF67DT132S4,KF67DT63S4,KF67DT71S4,KF67DT80S4,KF67DT90S4,KF67DV100S4,KF67DV112S4,KF67DV132S4,KF67DV63S4,KF67DV71S4,KF67DV80S4,KF67DV90S4,KF67Y100S4,KF67Y112S4,KF67Y132S4,KF67Y63S4,KF67Y71S4,KF67Y80S4,KF67Y90S4,KF67DRE100L4,KF67DRE112L4,KF67DRE132L4,KF67DRE63L4,KF67DRE71L4,KF67DRE80L4,KF67DRE90L4,KF67DRS100L4,KF67DRS112L4,KF67DRS132L4,KF67DRS63L4,KF67DRS71L4,KF67DRS80L4,KF67DRS90L4,KF67DT100L4,KF67DT112L4,KF67DT132L4,KF67DT63L4,KF67DT71L4,KF67DT80L4,KF67DT90L4,KF67DV100L4,KF67DV112L4,KF67DV132L4,KF67DV63L4,KF67DV71L4,KF67DV80L4,KF67DV90L4,KF67Y100L4,KF67Y112L4,KF67Y132L4,KF67Y63L4,KF67Y71L4,KF67Y80L4,KF67Y90L4

KF67減速機搭配各種電機實物圖：可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間

伺服減速機KF67減速機工廠展示：看廠請聯(lián)系微信13826972124，獲取位置，需提前一天預約http://52kfvp.cn/product/list-kfxiliejiansuji-cn.html

推薦類似型號：減速機KA67
