KAF57減速機電機功率：

KAF57Y0.12KW,KAF57Y0.18KW,KAF57Y0.25KW,KAF57Y0.37KW,KAF57Y0.55KW,KAF57Y0.75KW,KAF57Y1.1KW,KAF57Y1.5KW,KAF57Y2.2KW,KAF57Y3KW,KAF57Y4KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

KAF57錐齒輪減速機減速比：

1:145.14減速箱,1:123.85減速箱,1:108.29減速箱,1:102.88減速箱,1:90.26減速箱,1:76.56減速箱,1:69.12減速箱,1:60.81減速箱,1:57.42減速箱,1:48.89減速箱,1:44.43減速箱,1:38.49減速箱,1:35.70減速箱,1:30.28減速箱,1:27.34減速箱,1:24.05減速箱,1:22.71減速箱,1:19.34減速箱,1:17.57減速箱,1:15.22減速箱,1:13.25減速箱,1:11.92減速箱,1:11.26減速箱,1:9.59減速箱,1:8.71減速箱,1:7.55減速箱,1:6.57減速箱,1:4.69減速箱

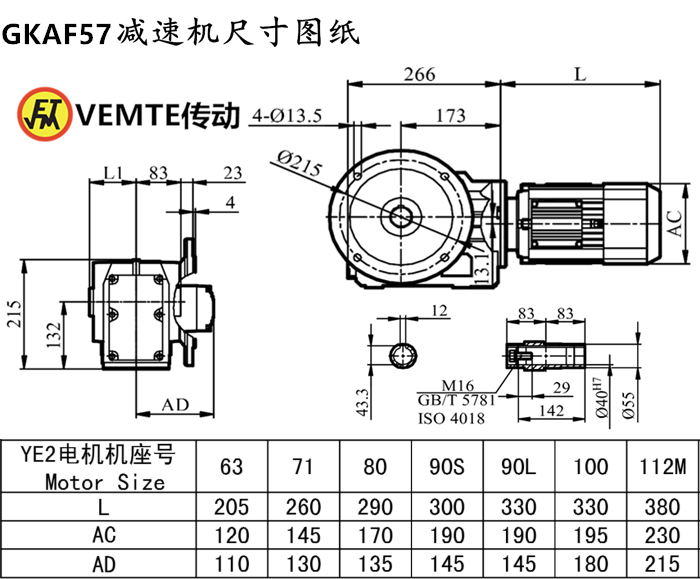

KAF57減速機安裝尺寸：輸出孔+鍵Φ43.3（可定做），高215*寬186.5（帶輸出法蘭）*長266

KAF57轉角減速電機輸出轉數：

9.6轉減速器,11轉減速器,13轉減速器,14轉減速器,16轉減速器,18轉減速器,20轉減速器,23轉減速器,24轉減速器,29轉減速器,32轉減速器,36轉減速器,39轉減速器,46轉減速器,51轉減速器,58轉減速器,62轉減速器,72轉減速器,80轉減速器,92轉減速器,106轉減速器,117轉減速器,124轉減速器,146轉減速器,161轉減速器,185轉減速器,213轉減速器,299轉減速器。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

KAF57減速機輸出扭矩：KAF系列減速機

7630N.m減速機,7300N.m減速機,6930N.m減速機,3480N.m減速機,6280N.m減速機,5910N.m減速機,5740N.m減速機,5430N.m減速機,5190N.m減速機,5150N.m減速機,4990N.m減速機,4650N.m減速機,4520N.m減速機,4360N.m減速機,4180N.m減速機,3800N.m減速機。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速器型號加大,或者兩個減速機組合使用）

KAF57減速機電機型號：KAF57DRE100M4,KAF57DRE112M4,KAF57DRE63M4,KAF57DRE71M4,KAF57DRE80M4,KAF57DRE90M4,KAF57DRS100M4,KAF57DRS112M4,KAF57DRS63M4,KAF57DRS71M4,KAF57DRS80M4,KAF57DRS90M4,KAF57DT100M4,KAF57DT112M4,KAF57DT63M4,KAF57DT71M4,KAF57DT80M4,KAF57DT90M4,KAF57DV100M4,KAF57DV112M4,KAF57DV63M4,KAF57DV71M4,KAF57DV80M4,KAF57DV90M4,KAF57Y100M4,KAF57Y112M4,KAF57Y63M4,KAF57Y71M4,KAF57Y80M4,KAF57Y90M4,KAF57DRE100L4,KAF57DRE112L4,KAF57DRE63L4,KAF57DRE71L4,KAF57DRE80L4,KAF57DRE90L4,KAF57DRS100L4,KAF57DRS112L4,KAF57DRS63L4,KAF57DRS71L4,KAF57DRS80L4,KAF57DRS90L4,KAF57DT100L4,KAF57DT112L4,KAF57DT63L4,KAF57DT71L4,KAF57DT80L4,KAF57DT90L4,KAF57DV100L4,KAF57DV112L4,KAF57DV63L4,KAF57DV71L4,KAF57DV80L4,KAF57DV90L4,KAF57Y100L4,KAF57Y112L4,KAF57Y63L4,KAF57Y71L4,KAF57Y80L4,KAF57Y90L4,KAF57DRE100S4,KAF57DRE112S4,KAF57DRE63S4,KAF57DRE71S4,KAF57DRE80S4,KAF57DRE90S4,KAF57DRS100S4,KAF57DRS112S4,KAF57DRS63S4,KAF57DRS71S4,KAF57DRS80S4,KAF57DRS90S4,KAF57DT100S4,KAF57DT112S4,KAF57DT63S4,KAF57DT71S4,KAF57DT80S4,KAF57DT90S4,KAF57DV100S4,KAF57DV112S4,KAF57DV63S4,KAF57DV71S4,KAF57DV80S4,KAF57DV90S4,KAF57Y100S4,KAF57Y112S4,KAF57Y63S4,KAF57Y71S4,KAF57Y80S4,KAF57Y90S4

KAF57減速機配各種電機實物圖：可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間

KAF57變頻減速電機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://52kfvp.cn/product/list-kafxiliejiansuji-cn.html

推薦類似型號：減速機K57
