KA127錐齒輪減速電機功率：KA127Y0.18KW,KA127Y0.25KW,KA127Y0.37KW,KA127Y0.55KW,KA127Y0.75KW,KA127Y1.1KW,KA127Y1.5KW,KA127Y2.2KW,KA127Y3KW,KA127Y4KW,KA127Y5.5KW,KA127Y7.5KW,KA127Y11KW,KA127Y15KW,KA127Y18.5KW,KA127Y22KW,KA127Y30KW,KA127Y37KW,KA127Y45KW,KA127Y55KW,KA127Y75KW,KA127Y90KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

KA127減速機減速比：伺服電機減速機

1:146.07減速器,1:136.14減速器,1:122.48減速器,1:110.18減速器,1:89.89減速器,1:81.98減速器,1:70.95減速器,1:62.60減速器,1:54.07減速器,1:47.82減速器,1:40.19減速器,1:36.25減速器,1:31.37減速器,1:27.68減速器,1:23.91減速器,1:21.15減速器,1:17.77減速器,1:14.35減速器,1:12.79減速器,1:10.74減速器,1:8.68減速器

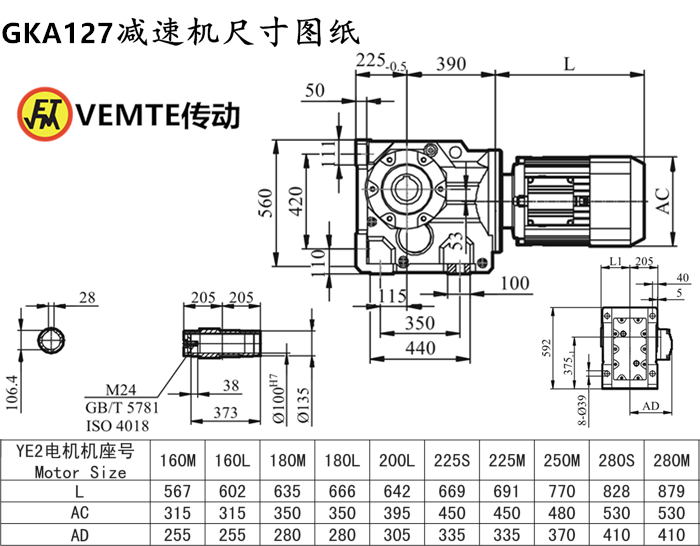

KA127減速機安裝尺寸：輸出孔+鍵Φ106.4（可定做），高560*寬400*長615

KA127雙出軸減速機輸出轉數：

9.6rpm減速機,10rpm減速機,11rpm減速機,13rpm減速機,16rpm減速機,17rpm減速機,20rpm減速機,22rpm減速機,26rpm減速機,29rpm減速機,35rpm減速機,39rpm減速機,45rpm減速機,51rpm減速機,59rpm減速機,66rpm減速機,79rpm減速機,98rpm減速機,109rpm減速機,130rpm減速機,161rpm減速機。（以上rpm/min數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

KA127減速機輸出扭矩：

13000Nm減速箱,12100Nm減速箱,8530Nm減速箱,8000Nm減速箱,7230Nm減速箱。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

KA127減速機電機型號：KA127DV280S4,KA127DV225S4,KA127DV200S4,KA127DV180S4,KA127DV160S4,KA127DV132S4,KA127DV112S4,KA127DT280S4,KA127DT225S4,KA127DT200S4,KA127DT180S4,KA127DT160S4,KA127DT132S4,KA127DT112S4,KA127DRS280S4,KA127DRS225S4,KA127DRS200S4,KA127DRS180S4,KA127DRS160S4,KA127DRS132S4,KA127DRS112S4,KA127DRE280S4,KA127DRE225S4,KA127DRE200S4,KA127DRE180S4,KA127DRE160S4,KA127DRE132S4,KA127DRE112S4,KA127Y280S4,KA127Y225S4,KA127Y200S4,KA127Y180S4,KA127Y160S4,KA127Y132S4,KA127Y112S4,KA127DV280M4,KA127DV225M4,KA127DV200M4,KA127DV180M4,KA127DV160M4,KA127DV132M4,KA127DV112M4,KA127DT280M4,KA127DT225M4,KA127DT200M4,KA127DT180M4,KA127DT160M4,KA127DT132M4,KA127DT112M4,KA127DRS280M4,KA127DRS225M4,KA127DRS200M4,KA127DRS180M4,KA127DRS160M4,KA127DRS132M4,KA127DRS112M4,KA127DRE280M4,KA127DRE225M4,KA127DRE200M4,KA127DRE180M4,KA127DRE160M4,KA127DRE132M4,KA127DRE112M4,KA127Y280M4,KA127Y225M4,KA127Y200M4,KA127Y180M4,KA127Y160M4,KA127Y132M4,KA127Y112M4,KA127DV280L4,KA127DV225L4,KA127DV200L4,KA127DV180L4,KA127DV160L4,KA127DV132L4,KA127DV112L4,KA127DT280L4,KA127DT225L4,KA127DT200L4,KA127DT180L4,KA127DT160L4,KA127DT132L4,KA127DT112L4,KA127DRS280L4,KA127DRS225L4,KA127DRS200L4,KA127DRS180L4,KA127DRS160L4,KA127DRS132L4,KA127DRS112L4,KA127DRE280L4,KA127DRE225L4,KA127DRE200L4,KA127DRE180L4,KA127DRE160L4,KA127DRE132L4,KA127DRE112L4,KA127Y280L4,KA127Y225L4,KA127Y200L4,KA127Y180L4,KA127Y160L4,KA127Y132L4,KA127Y112L4

KA127伺服減速機配各種電機實物圖：可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間

KA127減速機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://52kfvp.cn/product/list-kaxiliejiansuji-cn.html

推薦類似型號：減速機KAF127
