K167錐齒輪減速電機功率：K167Y0.55KW,K167Y0.75KW,K167Y1.1KW,K167Y1.5KW,K167Y2.2KW,K167Y3KW,K167Y4KW,K167Y5.5KW,K167Y7.5KW,K167Y11KW,K167Y15KW,K167Y18.5KW,K167Y22KW,K167Y30KW,K167Y37KW,K167Y45KW,K167Y55KW,K167Y75KW,K167Y90KW,K167Y110KW,K167Y132KW,K167Y160KW（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

K167減速機減速比：轉角減速機

1164.5比減速器,134.99比減速器,109.83比減速器,87.86比減速器,78.14比減速器,68.07比減速器,60.74比減速器,51.77比減速器,42.89比減速器,36.61比減速器,32.25比減速器,28.77比減速器,24.52比減速器,20.32比減速器,17.34比減速器

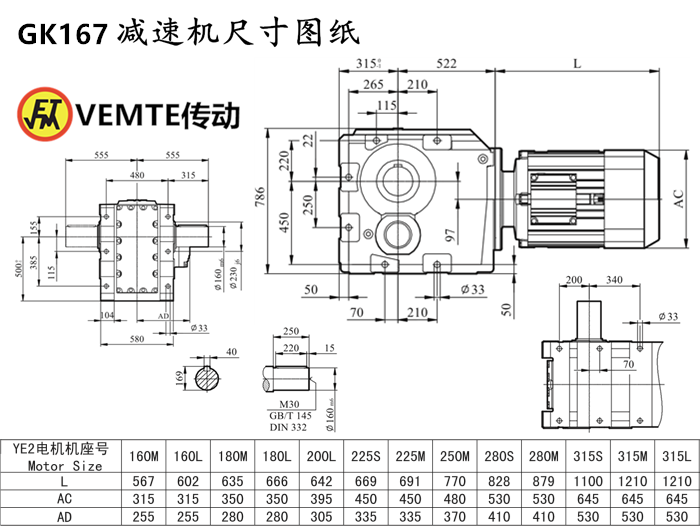

K167減速機安裝尺寸：輸出軸+鍵Φ169（可定做），高786*寬830（帶輸出軸）*長837

K167錐齒輪電機減速機輸出轉數：

8.5轉減速機,10轉減速機,13轉減速機,16轉減速機,18轉減速機,21轉減速機,23轉減速機,27轉減速機,33轉減速機,38轉減速機,43轉減速機,49轉減速機,57轉減速機,69轉減速機,81轉減速機。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

K167減速機輸出扭矩：

減速箱32000N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

K167減速機電機型號：K167DV160S4,K167DV180S4,K167DV200S4,K167DV225S4,K167DV250S4,K167DV280S4,K167DV315S4,K167DT160S4,K167DT180S4,K167DT200S4,K167DT225S4,K167DT250S4,K167DT280S4,K167DT315S4,K167DRS160S4,K167DRS180S4,K167DRS200S4,K167DRS225S4,K167DRS250S4,K167DRS280S4,K167DRS315S4,K167DRE160S4,K167DRE180S4,K167DRE200S4,K167DRE225S4,K167DRE250S4,K167DRE280S4,K167DRE315S4,K167Y160S4,K167Y180S4,K167Y200S4,K167Y225S4,K167Y250S4,K167Y280S4,K167Y315S4,K167DV160M4,K167DV180M4,K167DV200M4,K167DV225M4,K167DV250M4,K167DV280M4,K167DV315M4,K167DT160M4,K167DT180M4,K167DT200M4,K167DT225M4,K167DT250M4,K167DT280M4,K167DT315M4,K167DRS160M4,K167DRS180M4,K167DRS200M4,K167DRS225M4,K167DRS250M4,K167DRS280M4,K167DRS315M4,K167DRE160M4,K167DRE180M4,K167DRE200M4,K167DRE225M4,K167DRE250M4,K167DRE280M4,K167DRE315M4,K167Y160M4,K167Y180M4,K167Y200M4,K167Y225M4,K167Y250M4,K167Y280M4,K167Y315M4,K167DV160L4,K167DV180L4,K167DV200L4,K167DV225L4,K167DV250L4,K167DV280L4,K167DV315L4,K167DT160L4,K167DT180L4,K167DT200L4,K167DT225L4,K167DT250L4,K167DT280L4,K167DT315L4,K167DRS160L4,K167DRS180L4,K167DRS200L4,K167DRS225L4,K167DRS250L4,K167DRS280L4,K167DRS315L4,K167DRE160L4,K167DRE180L4,K167DRE200L4,K167DRE225L4,K167DRE250L4,K167DRE280L4,K167DRE315L4,K167Y160L4,K167Y180L4,K167Y200L4,K167Y225L4,K167Y250L4,K167Y280L4,K167Y315L4

K系列減速器K167減速機配各種電機的實物圖：可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間

K167減速機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://52kfvp.cn/product/list-kxiliejiansuji-cn.html

推薦類似型號：減速機KA167
