減速機S97電機功率：S97Y0.12KW,S97Y0.18KW,S97Y0.25KW,S97Y0.37KW,S97Y0.55KW,S97Y0.75KW,S97Y1.1KW,S97Y1.5KW,S97Y2.2KW,S97Y3KW,S97Y4KW,S97Y5.5KW,S97Y7.5KW,S97Y11KW,S97Y15KW,S97Y18.5KW,S97Y22KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

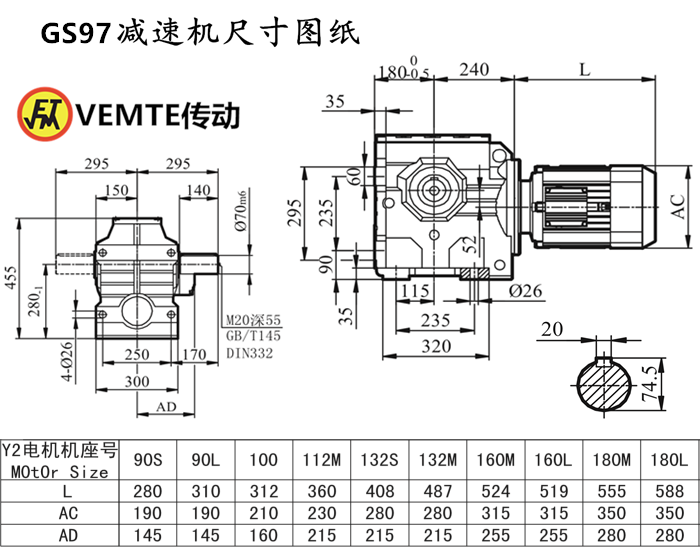

減速機S97安裝尺寸：輸出軸+鍵Φ74.5（可定做），高455*寬450（帶輸出軸）*長420

蝸輪蝸桿減速器S97減速比：減速器1:286.4,減速器1:262.22,減速器1:231.67,減速器1:196.52,減速器1:180.95,減速器1:161.74,減速器1:145.6,減速器1:131.85,減速器1:116.92,減速器1:105.71,減速器1:89.6,減速器1:80.85,減速器1:78.26,減速器1:71.43,減速器1:65.45,減速器1:60.59,減速器1:55.79,減速器1:49.87,減速器1:44.89,減速器1:40.65,減速器1:36.05,減速器1:32.6,減速器1:27.63,減速器1:26.39,減速器1:24.13,減速器1:23.59,減速器1:21.23,減速器1:19.23,減速器1:17.05,減速器1:15.42,減速器1:13.07,減速器1:11.41,減速器1:9.55,減速器1:8.26

減速機S97輸出轉數：4.9rpm/min減速機,5.3rpm/min減速機,6rpm/min減速機,7.1rpm/min減速機,7.7rpm/min減速機,8.7rpm/min減速機,9.6rpm/min減速機,11rpm/min減速機,12rpm/min減速機,13rpm/min減速機,16rpm/min減速機,17rpm/min減速機,18rpm/min減速機,20rpm/min減速機,21rpm/min減速機,23rpm/min減速機,25rpm/min減速機,28rpm/min減速機,31rpm/min減速機,34rpm/min減速機,39rpm/min減速機,43rpm/min減速機,51rpm/min減速機,53rpm/min減速機,58rpm/min減速機,59rpm/min減速機,66rpm/min減速機,73rpm/min減速機,82rpm/min減速機,91rpm/min減速機,107rpm/min減速機,123rpm/min減速機,147rpm/min減速機,169rpm/min減速機,。（以上rpm/min數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

S97渦輪伺服減速器輸出扭矩：1770N.m減速箱,2040N.m減速箱,2210N.m減速箱,2330N.m減速箱,2470N.m減速箱,2570N.m減速箱,2600N.m減速箱,2870N.m減速箱,2900N.m減速箱,3010N.m減速箱,3080N.m減速箱,3200N.m減速箱,3230N.m減速箱,3240N.m減速箱,3300N.m減速箱,3300N.m減速箱,3440N.m減速箱,3510N.m減速箱,3650N.m減速箱,3730N.m減速箱,3840N.m減速箱,3920N.m減速箱,4000N.m減速箱。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

減速機S97電機型號：S97DV80S4,S97DV90S4,S97DV100S4,S97DV112S4,S97DV132S4,S97DV160S4,S97DV180S4,S97DV200S4,S97DT80S4,S97DT90S4,S97DT100S4,S97DT112S4,S97DT132S4,S97DT160S4,S97DT180S4,S97DT200S4,S97DRE80S4,S97DRE90S4,S97DRE100S4,S97DRE112S4,S97DRE132S4,S97DRE160S4,S97DRE180S4,S97DRE200S4,S97DRS80S4,S97DRS90S4,S97DRS100S4,S97DRS112S4,S97DRS132S4,S97DRS160S4,S97DRS180S4,S97DRS200S4,S97Y80S4,S97Y90S4,S97Y100S4,S97Y112S4,S97Y132S4,S97Y160S4,S97Y180S4,S97Y200S4,S97DV80M4,S97DV90M4,S97DV100M4,S97DV112M4,S97DV132M4,S97DV160M4,S97DV180M4,S97DV200M4,S97DT80M4,S97DT90M4,S97DT100M4,S97DT112M4,S97DT132M4,S97DT160M4,S97DT180M4,S97DT200M4,S97DRE80M4,S97DRE90M4,S97DRE100M4,S97DRE112M4,S97DRE132M4,S97DRE160M4,S97DRE180M4,S97DRE200M4,S97DRS80M4,S97DRS90M4,S97DRS100M4,S97DRS112M4,S97DRS132M4,S97DRS160M4,S97DRS180M4,S97DRS200M4,S97Y80M4,S97Y90M4,S97Y100M4,S97Y112M4,S97Y132M4,S97Y160M4,S97Y180M4,S97Y200M4,S97DV80L4,S97DV90L4,S97DV100L4,S97DV112L4,S97DV132L4,S97DV160L4,S97DV180L4,S97DV200L4,S97DT80L4,S97DT90L4,S97DT100L4,S97DT112L4,S97DT132L4,S97DT160L4,S97DT180L4,S97DT200L4,S97DRE80L4,S97DRE90L4,S97DRE100L4,S97DRE112L4,S97DRE132L4,S97DRE160L4,S97DRE180L4,S97DRE200L4,S97DRS80L4,S97DRS90L4,S97DRS100L4,S97DRS112L4,S97DRS132L4,S97DRS160L4,S97DRS180L4,S97DRS200L4,S97Y80L4,S97Y90L4,S97Y100L4,S97Y112L4,S97Y132L4,S97Y160L4,S97Y180L4,S97Y200L4

伺服蝸輪蝸桿減速機S97配各種電機的實物圖：

減速機S97生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://52kfvp.cn/product/list-sxiliejiansuji-cn.html

推薦類似型號：SF97減速機
